Manufacturer And Exporter - Butterfly Valves

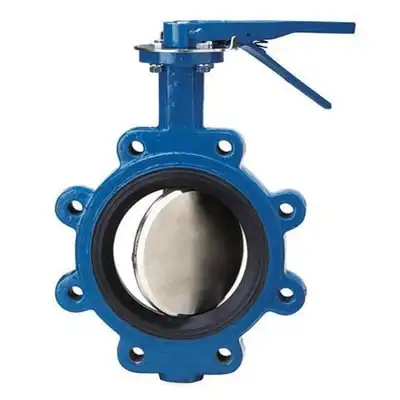

Our company has gained name and fame in field of manufacturing and supplying a superior quality range of Butterfly Valves in Ahmedabad, Gujarat, India. Our offered butterfly valves are designed and developed using best grade raw material under the guidance of vendors. Offered valves are widely an acclaimed for high quality and long lasting life. Offered range can be widely used in various industries and demanded in national market. The butterfly valves comprise a ring-shaped body in which a ring-shaped elastomer seat/liner is inserted.  A washing machine guided via a shaft swings via a 90°rotary motion into the gasket. Depending at the model and nominal size, this permits running pressures of up to twenty-five bar and temperatures as much as 210 °Cto are close off. Most often, those valves are used for automatically pure liquids, however also can be used with inside the proper cloth mixtures with out posing any issues for barely abrasive media or gases and vapors.

Specification of Butterfly Valves

Application Isolation
Features/Benefits
  • Semi Lug Type Design
  • Top Mounting Pad as per ISO 5211
  • Unique Stem retention design to provide blow out proof stem & easy assembly & disassembly of valves
  • Heavy Duty square grooved seat design with molded O ring seals to act as flange gasket
  • Self energizing seating design
  • Through flow disc design for large size Butterfly Valves
ANSI class / Rating 150#
Design Standard API 609 CAT A
Testing Standard API 598
Size 50-400 mm NB
M.O.C
  • Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc
  • Disc : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc
  • Seat : PTFE
Ends Wafer type
Operation Manual, Pneumatic, Gear operated, Motorized

Specification of Flanged End Butterfly Valve

Application Isolation
Features/Benefits
  • Centric, Single, double & triple eccentric Design
  • Top Mounting Pad as per ISO 5211
  • Unique Stem retention design & easy assembly & disassembly of valves
  • Heavy Duty square grooved seat design with molded O ring seals to act as flange gasket
  • Self energizing seating design
  • Through flow disc design for large size Butterfly Valves
  • Wide variety of application.
ANSI class / Rating PN 10, PN 16, PN 20
Design Standard AWWA C 504, API 609 CAT B
Testing Standard API 598
Size 80-600 mm NB
M.O.C
  • Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc
  • Disc : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc
  • Seat : PTFE
Ends Wafer type
Operation Manual, motorized, Pneumatic, Gear Operated

Specification of Wafer End Butterfly Valve

Application Isolation & Throttling
Features/Benefits
  • Centric, Single, double & triple eccentric Design
  • Top Mounting Pad as per ISO 5211
  • Unique Stem retention design & easy assembly & disassembly of valves
  • Heavy Duty square grooved seat design with molded O ring seals to act as flange gasket
  • Self energizing seating design
  • Through flow disc design for large size Butterfly Valves
  • Wide variety of application.
ANSI class / Rating PN 10, PN 16, PN 20
Design Standard AWWA C 504, API 609 CAT A
Testing Standard API 598
Size 50-600 mm NB
M.O.C
  • Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc
  • Disc : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc
  • Seals : PDM, Nitrile, Viton, PTFE, Metal Seated etc
Ends Wafer type
Operation Pneumatic, Gear operated, Motorized
