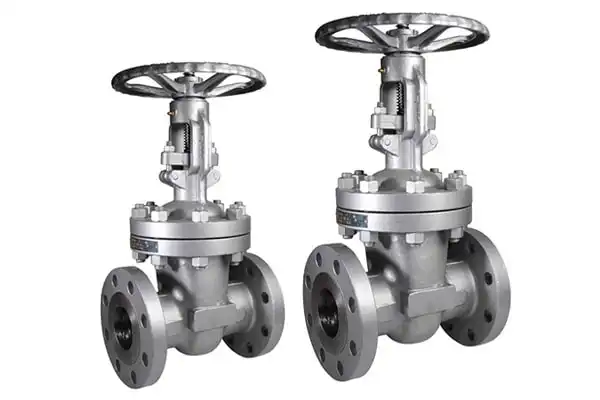

Manufacturer And Exporter - Cast Steel Gate Valve

Backed with a group of experienced professionals, we’re engaged in exporting, manufacturing and supplying of Cast Steel Gate Valve in Ahmedabad, Gujarat, India. Our supplied Valves are highly demanded for his or her better overall performance and sturdy painting’s life. Cast Steel Gate Valves are green prevent valves with a waft in both course and are commonly used in which a minimal stress drop is important. Steam, water, oil, oil vapor, fueloline offerings broadly appoint cast steel gate valves. Regulating/throttling waft, relieving and regulating stress are different traits of cast steel gate valves. This cast steel gate valve is in particular used for on/off control with low stress drop in machines and pipelines. Under our experts’ guidance, supplied gate valve is efficaciously synthetic via way of means of utilizing advanced grade solid metallic. Moreover, some of these Cast Steel Gate Valves are rigidly examined on diverse first-rate parameters to supply an ideal variety with inside the market.

Specification of Cast Steel Gate Valve

Application Isolation
Features/Benefits
  • Bolted bonnet,
  • OS & Y type
  • Rising spindle
  • Back seat arrangement
  • Welded / stallited seat
ANSI class / Rating 150#, 300#
Design Standard API 600, API 603, ASME B 16.34
Testing Standard API 598
Size 50-300 mm NB
M.O.C Body : ASTM A216 Gr WCB, ASTM A351 Gr CF8/CF8M/CF3/CF3M, Alloy-20, Hast-Alloy-B,C , Monel etc.
Ends Flange End
Operation Manual, motorized

Specification of Forged Steel Gate Valve

Application Isolation, control and throttling
Features/Benefits
  • Bolted bonnet,
  • OS & Y type
  • Rising spindle
  • Back seat arrangement
  • Welded / stallited seat
ANSI class / Rating 800#, 1500#
Design Standard API 602
Testing Standard API 598
Size 15-50 mm NB
M.O.C Body: A105, F11, F22, LF2, F304, F304L, F316, F316L
Trim : 13 % Cr, Stellite etc
Ends Screwed End, Socket Weld End, Butt Weld End, Flange End
Operation Manual
