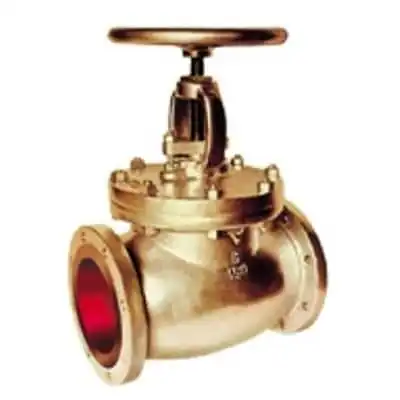

Manufacturer And Exporter - Cast Steel Globe Valve

Process Equipment Corporation is counted among the relied on Manufacturer and Supplier of Cast Steel Globe Valves in Ahmedabad, Gujarat, India. Also Globe Valves Manufacturer in India is durable, open peak is small, production is simple and convenient maintenance, etc. It may be used now no longer most effective with inside the low stress however additionally high stress. This Cast Steel Globe Valve closed relies upon on stem stress, make the disc sealing surfaces and seat sealing floor tightly. Cast globe valves may be used in each on-off and throttling applications. Because of the fast tour of the disc among the open and closed positions and the sturdy wear-resistant seating design, globe valves are preferably appropriate for common stroking services. The cast steel globe valves, may be made from diverse substances masking carbon metal, high-temperature alloy metal, stainless metal, low temperature metal, and unique alloys, etc.

Specification of Cast Steel Globe Valve

Application Isolation
Features/Benefits
  • Bolted bonnet,
  • OS & Y type
  • Rising spindle
  • Back seat arrangement
  • Welded / stallited seat
ANSI class / Rating 150#, 300#
Design Standard API 600
Testing Standard API 598
Size 50-300 mm NB
M.O.C Body: ASTM A216 Gr WCB, ASTM A351 Gr CF8/CF8M/CF3/CF3M, Alloy-20, Hast-Alloy-B,C , Monel etc.
Ends Flange End
Operation Manual, motorized

Specification of Forged Steel Globe Valve

Application Isolation
Features/Benefits
  • Bolted bonnet,
  • OS & Y type
  • Rising spindle
  • Back seat arrangement
  • Welded / stallited seat
ANSI class / Rating 800#, 1500#
Design Standard API 602
Testing Standard API 598
Size 15-50 mm NB
M.O.C Body: A105, F11, F22, LF2, F304, F304L, F316, F316L
Trim : 13 % Cr, Stellite etc
Ends Screwed End, Socket Weld End, Butt Weld End, Flange End
Operation Manual
